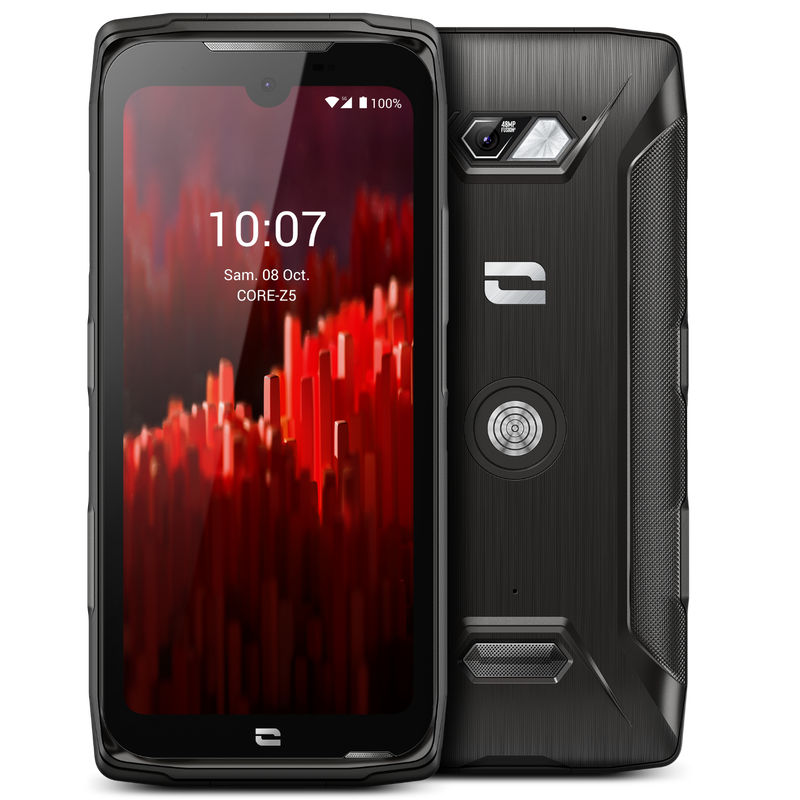

CORE-Z5
As powerful as it is durable
Ready to face the years ahead, the CORE-Z5 is Crosscall's 5G smartphone with a 5-year warranty.
Read all- 5G and WIFI 6/6E compatible
- Powerful Qualcomm QCM6490 processor
- 6.08" widescreen display
As efficient
as it is durable






An investment
for the future

Its powerful Qualcomm processor and compatibility with latest-generation networks (5G, WiFi 6/6E) combine to offer you optimum quality of service.
With its unfailing reliability, durability and ruggedness, it adapts to the most demanding conditions conditions, from mobile office to mission-critical operational tool.
Future-proof, it concentrates the latest and anticipates future technologies. All facets that make the CORE-Z5 a long-term investment. investment.
An investment
for the future
Its powerful Qualcomm processor and compatibility with latest-generation networks (5G, WiFi 6/6E) combine to offer you optimum quality of service.

With its unfailing reliability, durability and ruggedness, it adapts to the most demanding conditions conditions, from mobile office to mission-critical operational tool.
Future-proof, it concentrates the latest and anticipates future technologies. All facets that make the CORE-Z5 a long-term investment. investment.



Never before seen
in the telephony industry
The lightning speed of 5G for full-speed browsing and downloading large files in a fraction of a second.


A smart choice that allows you to look to the future with confidence, thanks to a full 5-year warranty



Never before seen
in the telephony industry
The lightning speed of 5G for full-speed browsing and downloading large files in a fraction of a second.



A smart choice that allows you to look to the future with confidence, thanks to a full 5-year warranty


Powerful
With its Qualcomm® QCM6490 processor and 4GB RAM, you'll enjoy smooth browsing in any situation!
Perfect for consulting your business applications and managing heavy tasks simultaneously.
Tough as nails
Do you work in the middle of the sea, in the most arid regions or in a cold store? The CORE-Z5 has thought of everything! CROSSCALL engineers have worked to ensure that it meets the MIL-STD-810H military standard, including repeated mechanical stress tests under exceptional climatic conditions. But they didn't stop there. Our experts also boosted its resistance to prepare it for the unexpected: a 2-meter drop onto hard surfaces (marble, concrete...) and waterproofing against various liquids (chorea water, drain oil, corrosive products...).





at a depth of 2m


Energy inreserve
Go on the move with peace of mind. You'll have plenty of time thanks to the components chosen by our engineers: a low-energy processor and a 4950 mAh LiPo battery with a very high capacity, and on average 20% more powerful than those of equivalent smartphones. In the event of low battery, an indicator light warns you so you can plug in your smartphone and never run out of battery!
in communication
As your long-term ally in peace of mind, the CORE-Z5 has the secret to keeping you up to date for years to come. With Extended Life capability, you'll benefit from software that's always up-to-date and always secure. Certified Android Enterprise Recommended, you can easily deploy and manage your enterprise mobile fleet with consistency.















More than a telephone office office...



Security, industry and construction:
countless sectors are accelerating their digitalization.
As a result, today's smartphones have to perform a wide range of tasks, becoming one with the user.
That's why the CORE-Z5 concentrates a maximum number of functions dedicated to professionals, while adapting to demanding environments.
Even more comfortable to read
Filling in a form, navigating on a map, reading a manual...all tasks that can be performed on a big screen!
The CORE-Z5 's design provides a large display surface without neglecting the importance of a good grip, opting for a 6.08" HD screen and a 19:9 ratio. No need to carry around a laptop all day to be efficient and productive!



Ergonomic right down to the
glove tips
Tailored to the needs of professionals, the CORE-Z5 features buttons and a screen with enhanced sensitivity for use with gloves. You'll save time and maintain a good feel for checking e-mails, using applications or Push-To-Talk functionality without slipping.
Your
office anywhere with
X-SPACE
Turn your smartphone into your computer with X-SPACE! Connect to any screen and enjoy a desktop interface as comfortable and functional as that of a computer.




Spotlight on your photos
When it comes to successful photography, especially in a professional context, every detail counts. Thanks to the high-resolution 48 megapixel image sensor with Fusion4 technology, sharpness and luminosity are guaranteed, whatever the time of day.

Download
share!
With such great autonomy and the "reverse charge" function, it will be easy to help out your friends and team-mates or charge another device (flashlight, headphones...) wherever you are.










Accepted!
The CORE-Z5 benefits from all CROSSCALL s expertise in group communications. It meets all the necessary criteria to establish itself as the essential tool for your critical missions and replace your old handheld tools.







A walkie-talkie:
received 5 out of 5!
An all-in-one solution, your CORE-Z5 becomes a walkie-talkie on command. Thanks to Push-To-Talk functionality and a long-lasting battery, you can communicate with your teams at any distance, with no limits on autonomy...with a simple gesture!
Optimize your
communications
PMR
You'll soon forget about your old handheld tools. Law enforcement, firefighters, emergency workers, security guards... the CORE-Z5 is a versatile tool that makes it easy for professionals to react quickly!
Experience the comfort of group communication over a very high-speed network (PMR 4G/5G) and share voice, photos or location. You can exchange data without network loss between several remote sites, for critical operations requiring close cooperation.


security reinforced!




in TEE
x-link
endearing technology
Enhance your experience with X-LINK™ technology, a magnetic attachment embedded on the back of the CORE-Z5. Quick and easy, it lets you place and secure your smartphone on a complete ecosystem of accessories designed to simplify and extend your smartphone's use.

Magnetic attachment and simple orientation in portrait/landscape mode

Fast, efficient recharging, 98% of power transmitted

Easy to use. No need for cables! Simply attach, charge and transfer data

X-BLOCKER,
mechanical reinforcement

If you're looking for accessories, here they are.




and make it part of your everyday life, thanks to X-LINKTM technology and the CROSSCALL ecosystem of accessories designed to improve and boost your your everyday life.
(1) 5 years of security patch updates from November 2022, the launch date of the CORE-Z5.
useful links
features
All you need to know about the CORE-Z5 can be found here:
OUTDOOR FEATURES | |
---|---|
IP standard | IP68 |
Salt water tightness | 2m / 30mn |
Dust-tight | Yes |
Operating temperature | -25°C/ +60°C |
Resistance | Drop test (6 faces, 2m on concrete) |
TECHNICAL DATA | |
---|---|
Dimensions | 175 x 81 x 14 mm |
Weight | 281 g |
Color | Black |
Operating system | Android™ |
Version / Zero Touch / AER | 12 / Yes / Yes |
Processor | Qualcomm® QCM6490 |
Type | Octocore 1xGoldP @2.7GHz + 3xGold@2.4GHz + xSilver@1.9GHz |
Head/Body SAR | 1.5 W/kg - 1.03 W/kg |
DAS Members | 2.63 W/kg |
Languages | DE, EN, AR, CH, CR, DK, ES, FL, FR, HR, IT, LV, LT, NL, NV, PL, PT, SR, SL, SV, S, CZ |
SCREEN | |
---|---|
Size | 6,08'' - 19:9 |
Type | IPS - Corning Gorilla® Glass 5 |
IK standard | IK05 |
Tactile | Capacitive, 5-point Wet & Glove touch screen |
Resolution | 1520x720 pixels (HD+) |
Brightness | 500 cd/m² (500 cd/m²) |
BATTERY | |
---|---|
Type | Lithium Polymer |
Capacity | 4950 mAh |
Minimum battery life in cycles | 800 |
Communication autonomy (3G/4G) | 34h / 44h |
Standby time (4G) | 306h |
GPS** autonomy | 12h45min |
Reverse load | Yes, via USB Type-C port |
** GPS + DATA + GOOGLE mapping enabled + 100% brightness screen
VIDEO | |
---|---|
Resolution | 4K @30fps |
Supported formats | 3GPP, MP4 |
NETWORK & CONNECTIVITY | |
---|---|
SIM | Triple drawer: 2 SIM + 1 micro SD |
Type | Nano SIM |
2G (GPRS/EDGE) | 850/900/1800/1900 MHz |
3G (HSPA+) | 850/900/1700/1900/2100 MHz |
4G (LTE) | LTE-FDD: B1 (2100MHz) / B2 (1900MHz) / B3 (1800MHz) / B5 (850MHz) / B7 (2600MHz) / B8 (900MHz) / B20 (800MHz) / B28 (700MHz) / B32 (1500MHz) / B68 (700MHz) + LTE-TDD: B38 (2600MHz) / B39 (1900MHz) / B40 (2300MHz) / B41 (2500MHz) / B42 (3500MHz) / B43 (3700MHz) |
5G | NR-FDD n1 (2100MHz)/ n3 (1800MHz) / n5 (850 MHz) / n7(2600 MHz) / n8(900 MHz) / n20(800 MHz) / n28(700 MHz) + NR - TDD n38(2600 MHz) / n40(2300 MHz) / n41(2500 MHz) / n77(3700 MHz) / n78(3500 MHz) |
VoLTE / VoWIFI | compatible** |
WIFI | 802.11a;802.11b; 802.11g; 802.11n; 802.11ac; 802.11ax; 802.11k; 802.11r; 802.11v, 802.11u 2.4 GHz + 5 GHz + 6 GHz WiFI6/6E Certified |
Bluetooth® technology | 5.2 |
NFC | Yes, payment function |
USB | Type-C 3.2 Gen1 |
OTG | Yes |
X-LINK | Yes |
MEMORY | |
---|---|
RAM | 6 GB |
Flash | 128 GB |
External (Micro SD) | max 1024 GB (sold separately) |
PHOTO | |
---|---|
Rear camera | 48 MP Fusion4 |
Autofocus PDAF | Yes |
Front camera | 8 MP |
Flash | LED |
Supported formats | JPEG, PNG, BMP |
MUSIC | |
---|---|
Audio connector | Waterproof 3.5mm jack |
Supported formats | AMR, MIDI, MP3, WAV, AAC; 3GP, WAVE |
Micro | Micro waterproof, GORE® membrane |
Speaker | 100dB at 10cm |
FUNCTIONALITIES | |
---|---|
Play store™ | Yes |
Google Services | Yes |
Free hand | Yes |
Alarm clock | Yes |
Tape recorder | Yes |
Flashlight | Yes |
Customizable multifunction button | Yes,4 |
QR code reader | Yes |
Fingerprint reader | Yes |
Indicator light | Yes, 2 multicolor LEDs |
LOCATION | |
---|---|
GPS | Yes, dual frequencies (L1/L5, E1/E5) |
Type | GPS, A-GPS, Glonass, Beidou, Galileo |
SENSORS | |
---|---|
Accelerometer / G-Sensor | Yes |
Proximity sensor | Yes |
Brightness sensor | Yes |
Gyroscope | Yes |
Magnetometer / E-Compass | Yes |
IN THE BOX | |
---|---|
Charger | No |
Cable | Yes |
Headphones | No |
X-BLOCKER | Yes |
SIM card ejector | Yes |
Neckband | No |
PRODUCT QUALITIES AND ENVIRONMENTAL FEATURES | |
---|---|
Incorporation of recycled materials | |
Recyclability | |
Presence of precious metals | Contains at least 179 mg of precious metals |
Presence of rare earths | Contains at least 63 mg of rare earths |
Presence of hazardous substances | |
Information on premiums and penalties | This product is subject to a reparability bonus |
Substances defined by ANSES | |
Presence of endocrine disruptors | |
Tantalum in capacitors | between 0.01 g and 0.1 g |
Neodymium in loudspeakers, vibration motors and magnets | between 0.05 g and 0.2 g |
Gold in all components | between 0.02 g and 0.05 g |
Substance of very high concern (SVHC) if present |
Quality and environmental characteristics of packaging/notice | |
---|---|
Incorporation of recycled materials | Packaging with at least 69% recycled content |
Possibility of re-use | |
Recyclability | Packaging and leaflets mostly recyclable |
Presence of hazardous substances | |
Information on premiums and penalties | Packaging is subject to a premium for the incorporation of recycled materials |
Substances defined by ANSES | |
Presence of endocrine disruptors |
Battery quality and environmental characteristics | |
---|---|
Incorporation of recycled materials | |
Recyclability | Most batteries can be recycled |
Presence of hazardous substances | |
Substances defined by ANSES | |
Information on premiums and penalties | This product is subject to a premium linked to lithium-cobalt technology. |
Presence of cobalt | More than 10 g |
