The 4G mobile

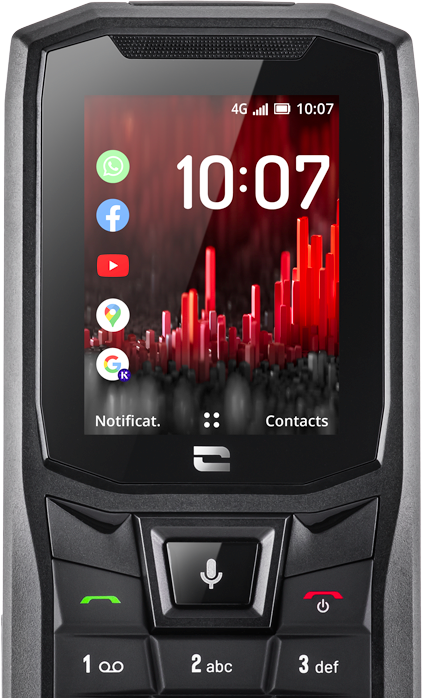

The CORE-S4 brings you the very essence of CROSSCALL in the most accessible of all 4G mobile phones. We have designed the CORE-S4 to be part mobile phone, part smartphone, packed full of resilience and endurance. It is compact, robust and simple to use and is even compatible with the X-LINK™ mounting and charging system. And last but not least, it has 4G connection and access to the most popular apps.Read all
- 4G, WI-FI, KaiOS, DECT Replacement
- Durability: Resilience, endurance
- Ergonomic Design: 2.4” screen, X-LINK™
Core-s4The 4G mobile phone
Your next phone isn’t just a mobile phone. It’s more than that.core-s4
Your CORE-S4 comes with 4G and Wi-Fi and is powered by the KaiOS operating system.
KaiOS, for keypad feature phones
With the KaiOS app store, many of the most popular apps come already installed on your CORE-S4.
This means you can access Facebook and WhatsApp as soon as you start your phone.
Want even more? Go to the KaiOS store to find a wide range of downloadable apps.
The phone that offers both 4G and WI-FI
Touch and voice control
The CORE-S4 has a voice recognition button at the centre of its monoblock keyboard. Tap the button to use voice commands with your phone. Searching the internet, texting, looking up videos on YouTube, etc. have never been easier: just speak, and it follows your commands!
Optimised to replace your corporate wireless telephony
In the past, wireless phones were used to make calls from one workstation to another within a company on dedicated infrastructures, in addition to the 3G/4G and WiFi networks already available, thus limiting mobility and usage close to the company. Those days are over. Don't miss any more mobile calls and gain in reactivity.
Composez le numéro spécifique et joignez la personne adéquate.
Blocking anonymous calls*
Block all anonymous calls.
Block international or premium rate calls, silent mode, filter out numbers without CLIP (caller display).
Attended transfer: the ability to manage and forward calls.
« After a discussion with my operator, who showed me the features available for communications in my company, we decided to equip all our employees with a CORE-S4 with its X-DOCK charging station. This solution allowed us to simplify the management of the fleet, i.e. centralized configuration of user groups and their lines, and on the device side, use on our corporate WiFi network and less breakage thanks to the phone's resistance. What makes you different? The fact that you are a French brand capable of offering attractive products in terms of both promises and equipment costs, and your ability to support us throughout the project. »
The CORE-S4 is quite simply ideal for outdoor use.
Compact and extremely robust
American military standard MIL STD 810H
The CORE-S4 has passed 15 of the US military standard MIL STD 810H tests with flying colours, including the drop test from two metres onto concrete and the temperature tests. Do you work in the steel industry? Or maybe in cold storage rooms? Look no further! The CORE-S4 can withstand temperatures ranging from -32°C to +60°C.
Waterproof and impervious to microparticles
Waterproof and impervious to microparticles
In compliance with standard IP68, the CORE-S4 also withstands immersion to a depth of 2m for 30 mins.
Designed for use in harsh conditions, the CORE-S4 with its monoblock keyboard can be washed with soap, whilst a microperforated GORE membrane protects your microphone against water infiltration.
With its single circuit numeric keypad and built-in protective grilles on the ear speaker and hands-free speaker, the CORE-S4 never lets dust in.
It’s an ideal design if you are involved with woodwork, where sawdust can get in between the keys or into the speakers and eventually damage your phone.
Sealing caps are also included to ensure that your phone is completely protected from all other microparticles.
At the start of day, I plug my CORE-S4 into the X-CAR PRO to charge the battery for the whole day. I usually have about 7 or 8 visits a day and the phone lets me stay in touch with my clients all day long. With the CORE-S4 I can keep in close contact with the clients. It also helps me to keep in touch with the office, which is key, given that our work is all about relationships between people. So it’s very important to have a long battery life. Also, the native apps mean I can go online or access some entertainment without worrying about running out of charge, which is really important to me. It means that I can sometimes take a break during the day, thanks to CROSSCALL’s long battery life
Durability is essential…
Durability, reliability and repairability are its fundamental elements.
Designed with our core values in mind, the CORE-S4 embodies our commitment to durability and to building a phone you can rely on, without limiting its usability. It also has a three-year warranty like all the products in the range.
Buttons remain waterproof after 400,000 presses
In other words, 365 presses every day of the warranty period.
A BATTERY THAT LASTS
« I work in an environment that is very noisy and exposed to intense heat. When you melt metal, you generate a lot of dust. This dust is very fine and penetrates the phone’s speaker grille in the space of a few days, completely clogging up the membrane so it can no longer vibrate and therefore emit sound. To cope with these very difficult conditions and combat this issue, we decided to use the CORE-S4. It’s also resistant to all liquids, which is a huge plus since there's also a lot of oil and grease on site. Being equipped with Crosscall devices means we don’t need to replace our phones as often, and the daily management of our pool of mobile phones is much easier. From the feedback I have received from employees with the phones, I can confirm that Crosscall products are reliable »
They are certainly durable and they are also repairable !
Repairability is a key part of a product’s durability, and important work has been carried out throughout the design process of the CORE-S4 so that its components can be easily replaced by accredited repair centres.
The camera is easy to remove.
When opening the phone, there's no glue to remove, only screws.
The battery is screwed in (not glued).
The glass is not glued to the screen.
Spare parts available for 10 years for the CORE-S4
The reduced amount of plastic is great for the environment.
The sustainability of the CORE-S4 can also be seen in its packaging. Creating eco-friendly packaging is one of the brand's commitments and is part of our CSR (Corporate Social Responsibility) policy.
Designed for your comfort
Designed for your comfort
Engineered as a smartphone during its development, the CORE-S4 is the latest CROSSCALL phone in the CORE series.
It is the perfect size (140 x 62 x 14.4 mm) to hold in your hand, and you can even slip it into your pocket, whether you’re wearing jeans or overalls.
Typing on your keypad has never been so enjoyable.
The CORE-S4 features a one-piece silicone backlit numeric keypad that prevents dust getting between the keys. For even more precision and to make it easier to text, the keys on the CORE-S4 keypad are textured for better grip and enlarged for optimal navigation and use, even when wearing gloves.
(*) IK05 only on Corning© Gorilla Glass 3 on the front of the phone.
Backlit to make it easy to read, even in bright sunlight
With optimal screen brightness of 500 cd/m2, the CORE-S4 is can also be read comfortably in bright sunshine. The CORE-S4 display is protected by damage-resistant Corning© Gorilla Glass 3, which also provides you with maximum brightness.
No more “Sorry, I couldn’t hear you…”
Making calls in noisy places can sometimes be difficult. The CORE-S4 is equipped with a 100dB speaker, so you can hear the person you’re talking to and have clear and audible calls wherever you are, whether in a workshop, on a construction site or in the city centre.
The CORE-S4 is equipped with a microphone that is specially designed to make sure you are heard clearly.
The CORE-S4 is the first CROSSCALL touch phone compatible with X-Link™, and is at the heart of our range of X-LINK™ accessories(1) that are designed to optimise your experience.
(1) Excluding X-MEMORY
Magnetic mounting and easy portrait/landscape orientation
Fast and efficient charging, 98% of power transmitted
Easy to use. No need for cables! Attach in one step, charge and transfer data
Combine it with...
For example, you can connect to an X-POWER for two full charges thanks to its 6000 mAh battery life.
The new X-DOCK gives you the opportunity to charge a CROSSCALL device and another device at the same time.
Everything you need to know about the CORE-S4 can be found here :
|IP rating||IP 68|
|Waterproofness against salt and chlorinated water||2m/30min|
|Operating temperature||-25°C / +60°C|
US MIL-STD-810H (15 tests)
Drop Test (6 sides, 2m)
|Dimensions (L x l x h)||140 x 62 x 14,4mm|
|Type||QUAD-CORE 1,1 GHZ|
|Head/Body SAR||1,311 W/kg - 1,077 W/kg|
|Limb SAR||2,712 W/kg|
|Languages||French, German, English, Spanish, Croatian, Italian, Hungarian, Dutch, Polish, Portuguese, Slovenian, Arabic, Chinese|
|Input voltage||100-240V ~|
|Input AC frequency||50 / 60Hz|
|Output voltage||5,0V ⎓|
|Average efficiency in active mode||75.10%|
|Efficiency at low load (10%)||71.01%|
|No load power consumption||0.037W|
|Size||2,4 - 4/3|
|Protective glass||Corning® Gorilla® Glass 3|
|Resolution||320x240 pixels, QVGA|
|Talk time (2G/3G)||13h30|
|Standby time (4G)||10 days|
|External (Micro SD)||max 64 Go (sold separately)|
|NETWORK & CONNECTIVITY|
|SIM||Dual tray: SIM or SIM + micro SD|
|2G (GPRS/EDGE)||850/900/1800/1900 MHz|
|3G (HSPA+)||850/900/1900/2100 MHz|
|4G (LTE)||FDD-LTE band : 1(2100) / 3(1800) / 5(850) / 7(2600) / 8(900) / 20(800) / 28 fullband (700)|
802.11b; 802.11g; 802.11n
|USB Port||Micro USB 2.0|
|Rear camera||2 MP|
|Supported formats||JPEG, GIF, PNG, BMP|
|Supported formats||MP4, 3GPP|
|Supported formats||3GPP, MP3, AAC, MIDI, WAVE|
|Microphone||Waterproof microphone, GORE membrane|
|Speaker power||100 dB|
|GPS||Yes (location only) / Glonass|
|Accelerometer / G-Sensor||No|
|Magnetometer / E-Compass||No|
|Alarm clock||Yes (daily function)|
|FM Radio||Yes (built-in antenna)|
